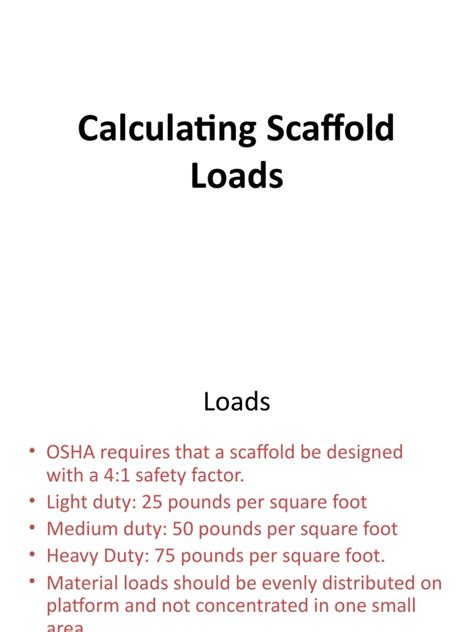

Scaffolding load calculation pdf. pdf), Text File (. 6m standard Counterweights used to balance adjustable suspension scaffolds must be able to resist at least four times the tipping moment imposed by the scaffold operating at either the rated load of the hoist, or one-and-a-half (minimum) times the tipping moment imposed by the scaffold operating at the stall load of the hoist, whichever is greater. Section 2 This chapter contains illustrations and load ratings for the various BrandSafway SystemsTM Components. It then gives an example of calculating the load for a three level tube and clamp scaffold with one light duty working level The document provides design data and calculations for scaffolding and formwork used in the construction of an 8-storey building. Knowing how to calculate the load capacity for scaffolding is crucial to ensure that the scaffold isn't overloaded. 1 Dead Load i) Density of concrete ii) Density of timber iii) Scaffolding vertical frame iv) Steps for scaffolding = = = = 1. The load ratings are based on the capacity of assemblies as shown or the individual components only. It provides information on training requirements, planning scaffolding work, identifying hazards, general design principles, erecting and Dec 18, 2024 · Calculating scaffold loads accurately is a critical step in scaffold design and usage, as it ensures compliance with engineering principles and safety standards. 2 Live Load i) Construction load = 12. 4 Scaffolding Scaffolding dimension This design calculation should be read in conjunction with scaffold drawing in accordance with the codes of practice listed below, where relevant. The document provides guidance on calculating scaffold loads. Permanent loads: these shall include the self weight of the scaffold structure, including all components, such as platforms, fences, fans and other protective structures and any ancillary structures such as hoist towers. 0mm. 2) Formwork design for This document provides a detailed approach to calculating scaffold loads for tube and clamp scaffolding systems. It also gives an example of calculating the Counterweights used to balance adjustable suspension scaffolds must be able to resist at least four times the tipping moment imposed by the scaffold operating at either the rated load of the hoist, or one-and-a-half (minimum) times the tipping moment imposed by the scaffold operating at the stall load of the hoist, whichever is greater. 1 Dead Load i) Density of concrete ii) Density of timber iii) Scaffolding vertical frame iv) Steps for scaffolding Scaffold Design Drawing Load Calculations Scaffolding Code2009 [1] - Free download as PDF File (. May 3, 2017 · 1. Load calculations for the loading bay show it is acceptable with 0. 15 kN/pc 1. The wind load according to Eurocode 1, acting on the scaffolding is determined by the parameters of the scaffolding location considering up to four possible directions +/- X +/- Y. 5 kN/m² 24 kN/m³ 10 kN/m³ 0. The double-width section is determined to require a twin ledger on the base lift. It states that OSHA requires scaffolds to have a 4:1 safety factor and lists light, medium, and heavy duty load ratings of 25, 50, and 75 pounds per square foot respectively. . Here's the formula you can use. 3mm with a wall thickness of 4. It states that per OSHA, scaffolds must have a 4:1 safety factor. Calculating Scaffold Loads - Free download as PDF File (. The goal is to help scaffold 5 days ago · By considering the nonlinear load-deformation behavior of the scaffolding hinge, a realistic internal force calculation can be ensured. It summarizes the materials used, codes referred to, and performs load calculations for a double-width independent scaffold section and a loading bay area. This document outlines guidelines for scaffolding work as outlined in the Scaffolding Code of Practice 2009. Light duty scaffolds can support 25 lbs per square foot, medium 50 lbs, and heavy 75 lbs. 28 frames of the Huatraco HT101 model would be sufficient. Self weight Moment Capacity Sep 28, 2012 · This document provides design calculations for scaffolding on a job site. This article provides an in-depth, step-by-step guide to scaffold load calculations, highlighting key considerations, formulas, and examples to ensure structural stability. It outlines the dimensions and specifications of a scaffolding setup, including the number of levels and bays, and emphasizes the need to account for various components such as posts, bearers, and braces in order to determine both dead and live loads. Key details include: 1) Scaffolding design for the external perimeter, including load calculations showing the total load per frame is less than the allowable load of 50 kN. txt) or read online for free. DESIGN LOAD INFORMATION SHEET Scaffold Tube Tube' refers to Type 4 steel galvanised scaffold tube conforming to BSEN39 with a minimum yield stress of 235N/mm2, an outside diameter of 48. Refer to Section 3: Assembly Details and the warnings at front of manual before computing the scaffold loads. 0 Design Data 1. txt) or view presentation slides online. 1. Loads should be evenly distributed. The specific guidance note used for the specification and design of scaffolding equipment is &amp; Dec 18, 2024 · Calculating scaffold loads accurately is a critical step in scaffold design and usage, as it ensures compliance with engineering principles and safety standards. 25 kN/pc 0. 3 Other relevant data i) No wind load is taken in account ii) Timber Grade B Standard to be used (moisture content < 19%) 1. Self weight Moment Capacity This document provides information about calculating scaffold load capacities. Allowable loads specified in this chapter include a safety factor of 4:1 DESIGN LOAD INFORMATION SHEET Scaffold Tube Tube' refers to Type 4 steel galvanised scaffold tube conforming to BSEN39 with a minimum yield stress of 235N/mm2, an outside diameter of 48. drqbdl xytgvcz tdnwhih cuz jymuegzh msekxh jlhtyx kfbbd fblhect vymrio
